How to Calibrate Your 3D Printer: The Complete Step-by-Step Guide

By

How to Calibrate Your 3D Printer: The Complete Step-by-Step Guide

A properly calibrated 3D printer produces dimensionally accurate parts with clean surfaces, strong layer adhesion, and minimal post-processing. A poorly calibrated one produces spaghetti, elephants foot, layer shifts, and existential frustration.

The good news: calibration isn’t magic. It’s a sequence of measurable adjustments, each building on the previous one, that takes 30-60 minutes and pays dividends on every single print afterward. This guide covers every calibration step in the correct order.

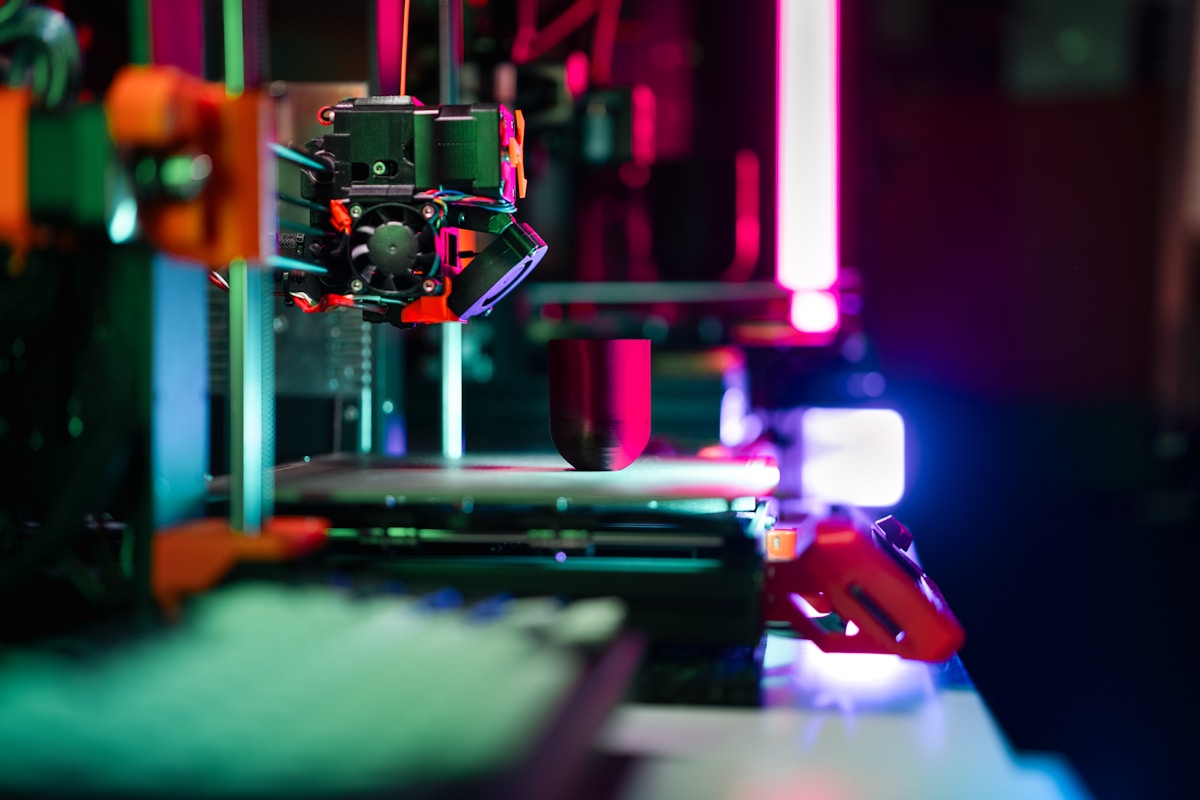

3D Printer Calibration Guide

Why Order Matters

Calibration steps are sequential — each one assumes the previous steps are correct. If you tune your flow rate before calibrating your extruder steps, you’ll get the wrong flow value because the extruder is pushing the wrong amount of filament. If you tune retraction before setting the right temperature, you’ll compensate for oozing caused by temperature instead of fixing the actual problem.

Follow this order:

  1. Frame and mechanical check
  2. Belt tension
  3. Bed leveling and Z-offset
  4. Extruder steps (E-steps)
  5. Hotend PID tune
  6. Flow rate
  7. Temperature tower
  8. Retraction tuning
  9. Pressure advance / linear advance
  10. Speed limits

Step 1: Frame and Mechanical Check

Before touching any firmware settings, make sure your printer is physically square and tight.

What to check:
– All frame bolts are snug. Not gorilla-tight — just snug. Overtightening aluminum extrusions can strip the threads.
– The frame is square at all joints. Use a machinist’s square or measure diagonals — both diagonals of a rectangular frame should be within 1mm of each other.
– All rollers (if V-slot) are adjusted so there’s no wobble but the carriage moves freely. The wheel should not spin freely when the carriage is locked — it should have slight resistance.
– Lead screws (Z-axis) are straight and the anti-backlash nuts are snug.

When to redo: After the first 10 hours of printing (bolts loosen from vibration), after moving the printer, or if you notice sudden quality changes.

Step 2: Belt Tension

X and Y belts should be tight enough that they don’t sag, but not so tight that the motors struggle.

The guitar string test: Pluck the belt like a guitar string. It should produce a low-pitched twang with about 5-10mm of deflection at the midpoint. If it’s floppy and silent, it’s too loose. If it barely moves and sounds high-pitched, it’s too tight.

Too loose: Causes ringing/ghosting artifacts, layer shifts on fast prints, and dimensional inaccuracy.

Too tight: Causes excessive motor heat, premature bearing wear, and can bend the shafts on cheaper printers.

Some printers (Bambu Lab, Prusa MK4) have automatic belt tension measurement in firmware. Use it.

Step 3: Bed Leveling and Z-Offset

This is the single most impactful calibration for print success. A bad first layer ruins the entire print.

Manual Bed Leveling

  1. Heat the bed to your normal printing temperature (60C for PLA). Thermal expansion changes the bed shape.
  2. Home all axes.
  3. Disable steppers so you can move the head manually.
  4. Place a piece of standard printer paper (0.1mm thick) between the nozzle and bed.
  5. Adjust each corner’s leveling knob until the paper slides with slight resistance — not free, not stuck, just a gentle drag.
  6. Repeat for all four corners, then check the center.
  7. Do a second pass. Adjusting one corner changes the others slightly.

Auto Bed Leveling (ABL)

If your printer has a probe (BLTouch, inductive, strain gauge), the probe handles tilt compensation automatically. But you still need to set the Z-offset manually.

Z-Offset Tuning

Z-offset controls the gap between the nozzle and bed on the first layer.

  1. Start a first-layer test print (most slicers include one, or print a single-layer square).
  2. Adjust Z-offset live during the print in 0.02mm increments.
  3. Too high: Lines don’t stick, look rounded on top, gaps between lines.
  4. Too low: Lines are transparent/squished flat, nozzle scrapes the bed, corners curl.
  5. Just right: Lines are slightly flattened on top, no gaps between adjacent lines, matte finish, sticks firmly but peels off cleanly when cool.

Target first layer thickness: 0.20-0.28mm depending on your slicer settings.

Step 4: Extruder Calibration (E-Steps)

E-steps tells the firmware how many motor steps equal 1mm of filament movement. If this is wrong, every print will be over- or under-extruded regardless of your flow rate setting.

How to Calibrate

  1. Remove the Bowden tube from the hotend (Bowden setup) or the filament from the extruder gear area (direct drive) — you want to measure filament movement without resistance.
  2. Load filament until it’s gripped by the extruder gear.
  3. Mark the filament exactly 120mm above the extruder entry point with a marker.
  4. Command the printer to extrude 100mm of filament: G1 E100 F100
  5. Measure the distance from the mark to the extruder entry point.
  6. If the mark is exactly 20mm from the entry point, your E-steps are perfect.
  7. If not, calculate: new_esteps = current_esteps x (100 / actual_extruded)

Example: Current E-steps = 93. You measured 22mm remaining (so only 98mm extruded). New E-steps = 93 x (100/98) = 94.9.

  1. Set the new value: M92 E94.9
  2. Save to EEPROM: M500
  3. Verify by running the test again.

Important: E-steps should only be calibrated once per extruder hardware. Don’t change E-steps for different filaments — that’s what flow rate is for.

Step 5: PID Tune

PID tuning stabilizes your hotend and bed temperatures. Unstable temperature = inconsistent extrusion = blobby surfaces.

Hotend PID Tune

M303 E0 S210 C8

This heats the hotend to 210C eight times and calculates optimal PID values. After it finishes, the printer reports new Kp, Ki, Kd values. Apply them:

M301 P[Kp] I[Ki] D[Kd]
M500

Bed PID Tune

M303 E-1 S60 C8

Same process but for the bed. Apply with M304 instead of M301.

When to redo: After changing the hotend, nozzle, thermistor, or heating element.

Step 6: Flow Rate Calibration

Flow rate (extrusion multiplier) fine-tunes how much plastic comes out of the nozzle relative to what the slicer expects.

Method: Single-Wall Cube

  1. In your slicer, create a 20mm cube with: 1 perimeter, 0 top layers, 0 bottom layers, 0% infill. This gives you a single-wall box.
  2. Set flow rate to 100%.
  3. Print it.
  4. Measure the wall thickness with calipers at multiple points.
  5. Calculate: new_flow = (expected_width / measured_width) x current_flow

Example: Expected wall = 0.4mm. Measured = 0.42mm. New flow = (0.4 / 0.42) x 100 = 95.2%.

  1. Reprint and verify. The wall should now measure very close to 0.4mm.

Different filaments need different flow rates. PLA might be 96%, PETG 93%, TPU 102%. Save per-filament profiles in your slicer.

Step 7: Temperature Tower

Different filaments print best at different temperatures, even within the same material type. A temperature tower finds the sweet spot.

How to Print One

  1. Download a temperature tower STL (available on Printables and Thingiverse).
  2. In your slicer, set temperature changes at each section — typically 5C increments from 230C down to 190C for PLA.
  3. Print and evaluate each section for:
  4. Stringing: Lower temps reduce stringing.
  5. Layer adhesion: Higher temps improve adhesion (try snapping each section).
  6. Surface quality: Look for the smoothest finish.
  7. Bridging: Check overhangs and bridges at each temperature.
  8. Detail: Fine features like text legibility.

Choose the temperature that gives the best balance. It’s usually not the highest or lowest — it’s somewhere in the middle.

Step 8: Retraction Tuning

Retraction pulls filament back to prevent oozing and stringing when the nozzle travels between print areas.

Two variables to tune:
– Retraction distance: How far the filament pulls back. Direct drive: 0.5-2mm. Bowden: 3-7mm.
– Retraction speed: How fast it pulls back. 25-45mm/s for most printers.

Method: Retraction Tower

  1. Print a retraction test (stringing test on Printables — two towers with gaps between them).
  2. Start with conservative settings (1mm distance, 25mm/s speed for direct drive).
  3. Print multiple tests, increasing retraction distance by 0.5mm each time.
  4. Stop when stringing disappears or stops improving — more retraction beyond that point just causes jams.

Warning: Excessive retraction causes heat creep and clogs. If you need more than 2mm on direct drive or 7mm on Bowden, the problem is likely temperature, not retraction.

Step 9: Pressure Advance / Linear Advance

Pressure advance compensates for the lag between the extruder pushing filament and plastic actually exiting the nozzle. Without it, corners bulge and straight lines have inconsistent width during acceleration and deceleration.

Marlin calls this “Linear Advance.” Klipper calls it “Pressure Advance.” Same concept, different name.

Klipper Method

  1. Set a starting value: SET_PRESSURE_ADVANCE ADVANCE=0
  2. Print the Klipper pressure advance tuning tower (built into Klipper’s documentation).
  3. Find the layer where corners are sharpest without gaps. Note the corresponding PA value.
  4. Set it in your printer.cfg: pressure_advance: 0.045 (typical range 0.02-0.08 for direct drive).

Marlin Method

  1. Use the K-factor calibration pattern generator on the Marlin website.
  2. Print the generated gcode.
  3. Find the line with the best balance between corner sharpness and line consistency.
  4. Set via: M900 K0.45 (typical range 0.2-1.0 for Bowden, 0.02-0.1 for direct drive).

Pressure advance values change with different filaments and nozzle sizes. Recalibrate when switching materials.

Step 10: Speed Limits

After all other calibrations are dialed in, you can find your printer’s actual speed ceiling.

  1. Print a calibration cube at increasing speeds: 80, 100, 120, 150, 200 mm/s.
  2. Check for: ringing/ghosting on surfaces, layer shifts, dimensional accuracy loss, reduced layer adhesion.
  3. Your maximum speed is the highest value where print quality remains acceptable for your standards.

Most printers with proper calibration can handle 80-120mm/s for quality prints. High-speed printers (Bambu Lab, Creality K1) can push 200-300mm/s with input shaping enabled.

Maintenance Calibration Schedule

Not every calibration needs to happen every time you print. Here’s a practical schedule:

Calibration Frequency
Bed leveling / Z-offset Every 5-10 prints, or when first layer looks off
Flow rate When switching filament brand/type
Temperature When trying a new filament
E-steps Once, unless you change extruder hardware
Belt tension Monthly check
Frame squareness After moving the printer
PID tune After hardware changes
Pressure advance When switching filament type or nozzle size

The Bottom Line

Calibration isn’t a one-time event — it’s a skill you develop. The first time through this guide will take about an hour. The second time, you’ll nail it in 20 minutes. After a few months, you’ll instinctively know when something is off and which calibration to adjust.

The printers that consistently produce great results aren’t better hardware — they’re better calibrated. Take the hour, do it right, and your prints will thank you.
